EZ Chart
Digital pressure charting and test validation for critical operations
What EZ Chart Solves
- Eliminates manual and subjective pressure charting
- Removes guesswork from pressure test validation
- Reduces non-productive time during critical operations
- Standardizes test execution and documentation
- Improves confidence in pressure test results
EZ Chart has been in continuous field use for over a decade, supporting hundreds of thousands of pressure tests across offshore and industrial applications.
What it does
- Digitally records high accuracy pressure data
- Validates pressure tests in real time
- Applies defined acceptance criteria automatically
- Displays live tests status with clear pass or fail indicators
- Generates professional PDF test reports upon completion
How it works

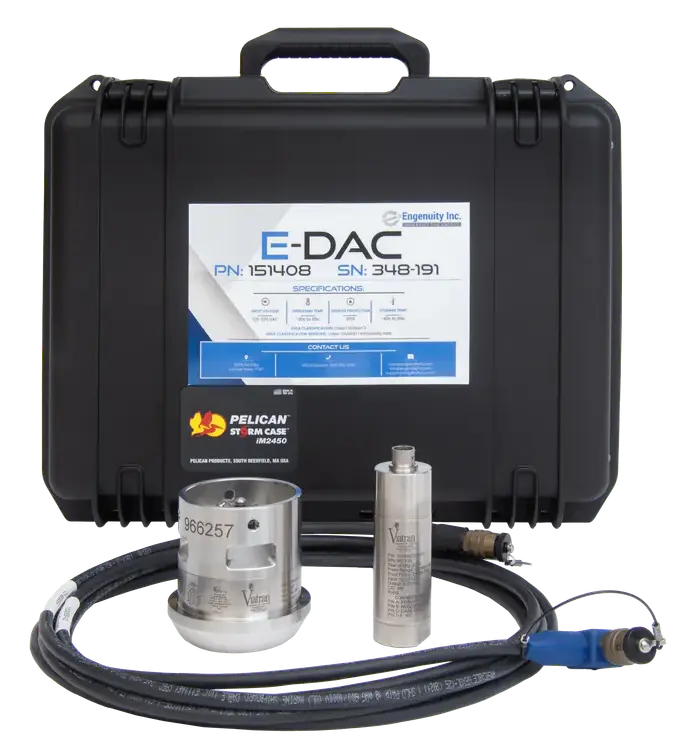

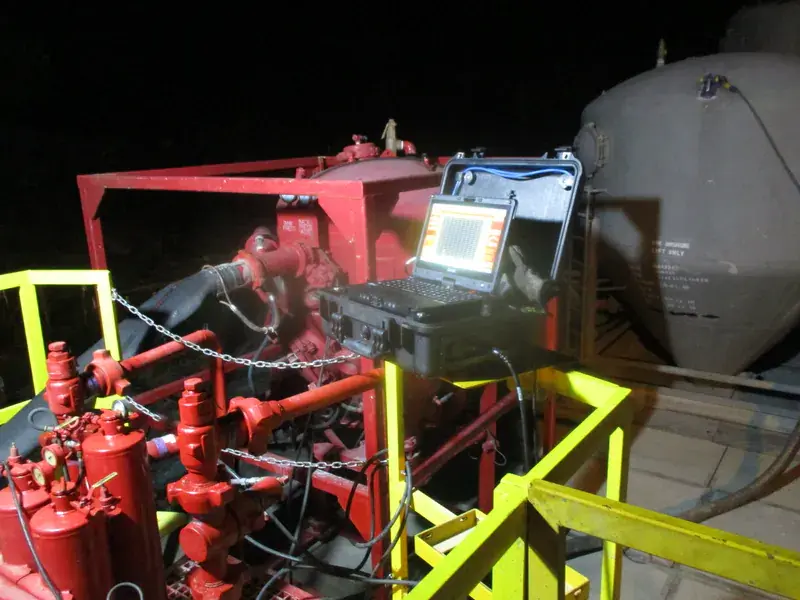

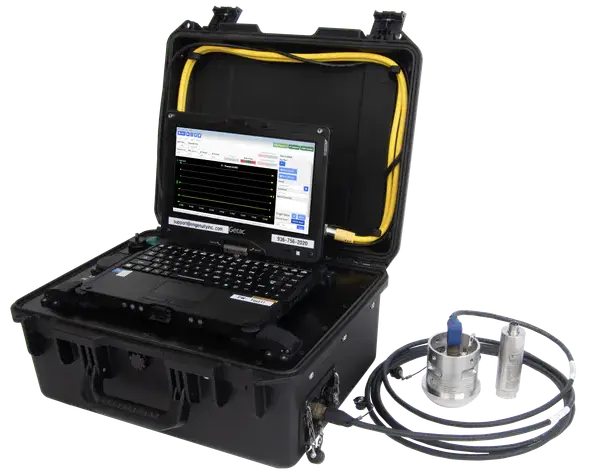

- Portable system housed in a ruggedized Pelican case
- Industrial PLC reads pressure from supplied precision transducers
- Serial connectivity for ROV and specialized test equipment
- Real time test validation executed at the PLC level
- Ruggedized PC runs proprietary Engenuity software
- User built P&ID style schematics define test configuration

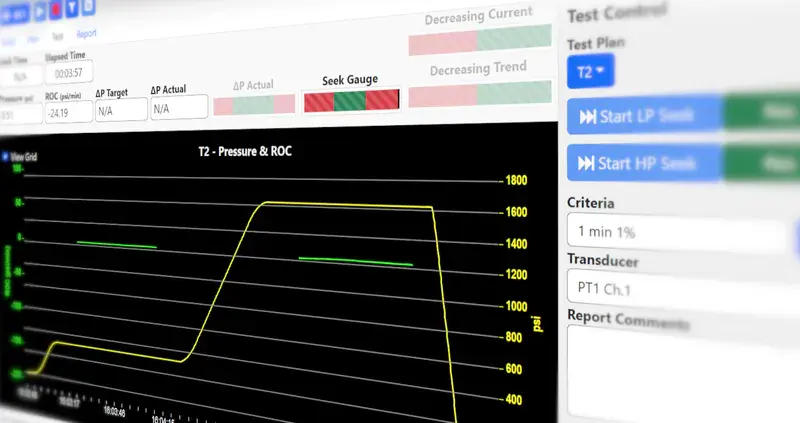

- Live visualization facilitates pass/fail determination in under 30 seconds
Where it is used
- Offshore drilling and completion operations
- Subsea and ROV pressure testing
- Well control equipment testing
- Land based oil and gas pressure testing by third party service providers
- Industrial piping and pressure vessel testing
- Applications requiring auditable pressure test records
